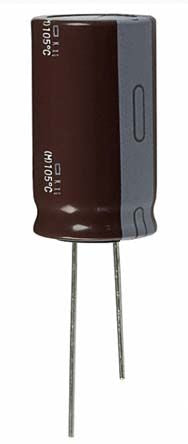

Nippon Chemi-Con 47μF 200V dc Aluminium Electrolytic Capacitor, Through Hole 13 (Dia.) x 21.5mm +105°C 13mm 5mm [EKXG201ELL470MK20S]; 144-3967
0₫
Mã kho: 1443967
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 47 µF |
Voltage | 200 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 13 (Dia.) x 21.5mm |
Height | 21.5mm |
Minimum Operating Temperature | -40°C |
Diameter | 13mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 5mm |
Lifetime | 10000h |
Series | KXG |
Tolerance | ±20% |
Dissipation Factor | 0.002 |
Ripple Current | 975mArms |
Leakage Current | 476 μA |
Polarised | Polar |
