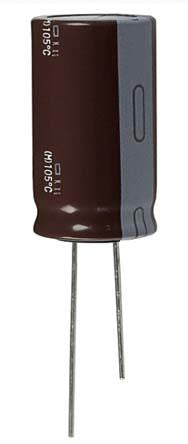

Nippon Chemi-Con 68μF 160V dc Aluminium Electrolytic Capacitor, Through Hole 13 (Dia.) x 21.5mm +105°C 13mm 5mm [EKXG161ELL680MK20S]; 144-3981
0₫
Mã kho: 1443981
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 68 µF |
| Voltage | 160 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 13 (Dia.) x 21.5mm |
| Height | 21.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 13mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 10000h |
| Series | KXG |
| Dissipation Factor | 0.002 |
| Polarised | Polar |
| Ripple Current | 1175mArms |
| Leakage Current | 535 μA |
| Tolerance | ±20% |
