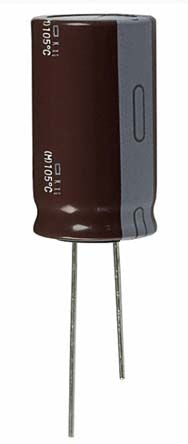

Nippon Chemi-Con 100μF 160V dc Aluminium Electrolytic Capacitor, Through Hole 16.5 (Dia.) x 21.5mm +105°C 16.5mm 7.5mm [EKXG161ELL101ML20S]; 144-3996
0₫
Mã kho: 1443996
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 100 µF |
Voltage | 160 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 16.5 (Dia.) x 21.5mm |
Height | 21.5mm |
Minimum Operating Temperature | -40°C |
Diameter | 16.5mm |
Maximum Operating Temperature | +105°C |
Lifetime | 10000h |
Lead Pitch | 7.5mm |
Series | KXG |
Leakage Current | 740 μA |
Tolerance | ±20% |
Ripple Current | 1420mArms |
Dissipation Factor | 0.002 |
Polarised | Polar |
