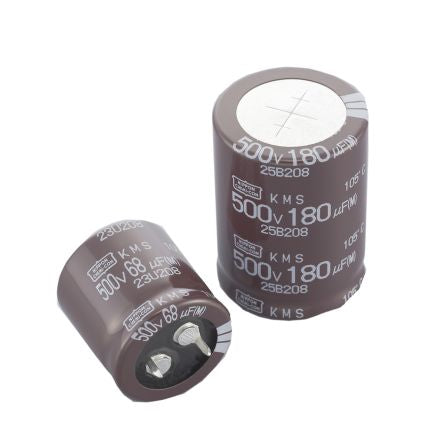

Nippon Chemi-Con 180μF 500V dc Aluminium Electrolytic Capacitor, Through Hole 25.4 (Dia.) x 50mm +105°C 25.4mm 10mm [EKMS501VSN181MQ50S]; 914-3840
0₫
Mã kho: 9143840
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 180 µF |
| Voltage | 500 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25.4 (Dia.) x 50mm |
| Length | 50mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 25.4mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 3000h |
| Lead Pitch | 10mm |
| Series | KMS |
| Ripple Current | 1.2Arms |
| Leakage Current | <=3√CV μA @ 5 min |
| Tolerance | ±20% |
| Dissipation Factor | 0.002 |
