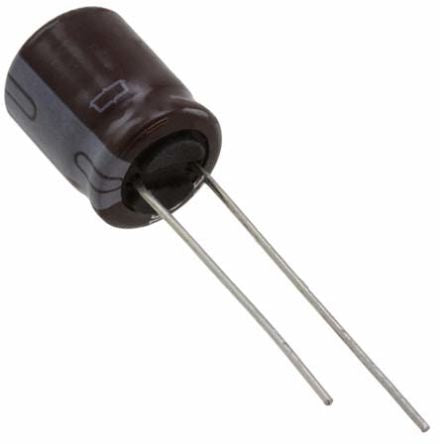

Nippon Chemi-Con 1000μF 6.3V dc Aluminium Electrolytic Capacitor, Through Hole 8.5 (Dia.) x 13mm +105°C 8.5mm 3.5mm [EKMQ6R3ELL102MHB5D]; 144-6928
0₫
Mã kho: 1446928
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1000 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8.5 (Dia.) x 13mm |
| Height | 13mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 3.5mm |
| Series | KMQ |
| Dissipation Factor | 0.0028 |
| Ripple Current | 390mArms |
| Tolerance | ±20% |
| Polarised | Polar |
| Leakage Current | 4 μA |
