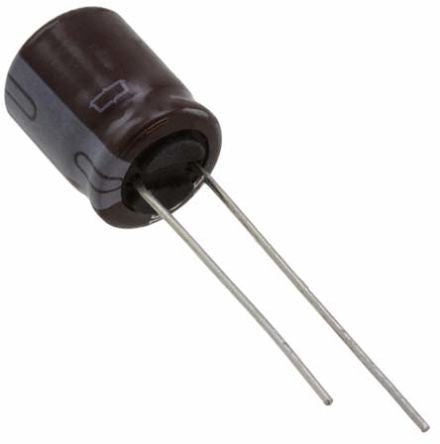

Nippon Chemi-Con 10μF 250V dc Aluminium Electrolytic Capacitor, Through Hole 10.5 (Dia.) x 14mm +105°C 10.5mm 5mm [EKMQ251ELL100MJC5S]; 144-7255
0₫
Mã kho: 1447255
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 250 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10.5 (Dia.) x 14mm |
| Height | 14mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 5mm |
| Series | KMQ |
| Tolerance | ±20% |
| Leakage Current | 4 μA |
| Ripple Current | 71mArms |
| Polarised | Polar |
| Dissipation Factor | 0.002 |
