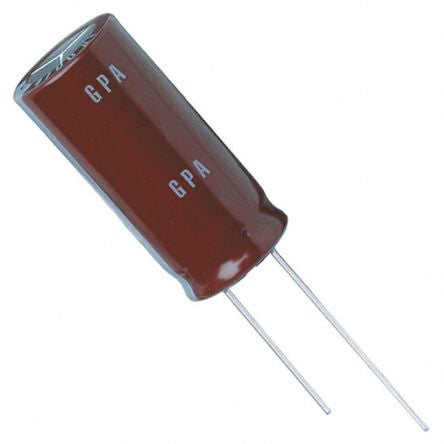

Nippon Chemi-Con 1500μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 35mm +125°C 16mm 7.5mm 35mm [EGPA500ELL152ML35S]; 170-0590
0₫
Mã kho: 1700590
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1500 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 16 (Dia.) x 35mm |
| Length | 35mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 5000h |
| Lead Pitch | 7.5mm |
| Series | GPA |
| Leakage Current | 4 μA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 700mΩ |
| Ripple Current | 3300mArms |
