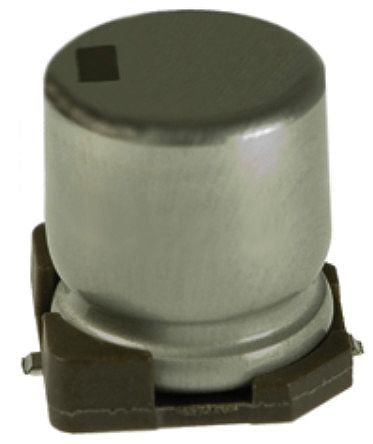

Nichicon 10μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 4 (Dia.) x 5.4mm +105°C 4mm 1mm [UWZ1C100MCL1GB]; 844-0780
by Nichicon
0₫
Mã kho: 8440780
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 4 (Dia.) x 5.4mm |
| Height | 5.4mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 4mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Lead Pitch | 1mm |
| Series | WZ |
| Ripple Current | 18mA |
| Polarised | Polar |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
