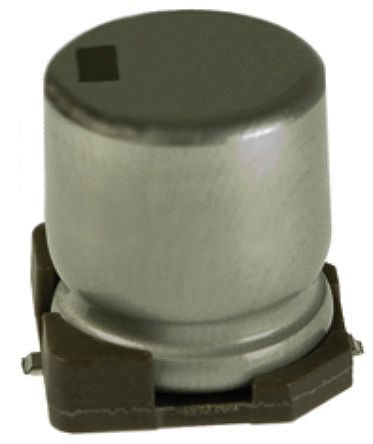

Nichicon 10μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 5.8mm +105°C 6.3mm 2.2mm [UWD1H100MCL1GS]; 167-1221
by Nichicon
0₫
Mã kho: 1671221
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2.2mm |
| Lifetime | 5000h |
| Series | WD |
| Ripple Current | 165mA |
| Tolerance | ±20% |
| Polarised | Polar |
| Leakage Current | 5 μA |
