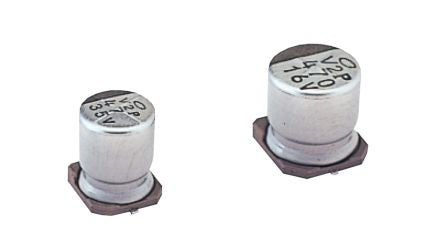

Capacitor Alu SMD -55°C to 105°C 100V 22 [UUX2A220MNL1GS]; 187-2231
by Nichicon
0₫
Mã kho: 1872231
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 100 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10.3 x 10.3 x 10mm |
| Height | 10mm |
| Length | 10.3mm |
| Depth | 10.3mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 4.5mm |
| Series | UX |
| Dissipation Factor | 0.0008 |
| Polarised | Polar |
| Leakage Current | 66 (Short Term) μA |
| Tolerance | ±20% |
| Ripple Current | 150mA |
