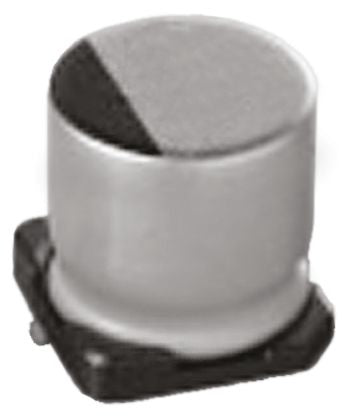

Nichicon 220μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10mm +105°C 10mm 4.5mm [UUX1V221MNL1GS]; 167-7851
by Nichicon
0₫
Mã kho: 1677851
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 220 µF |
Voltage | 35 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 10 (Dia.) x 10mm |
Height | 10mm |
Minimum Operating Temperature | -55°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 4.5mm |
Lifetime | 2000h |
Series | UX |
Ripple Current | 450mA |
Leakage Current | 231 μA |
Tolerance | ±20% |
Polarised | Polar |
