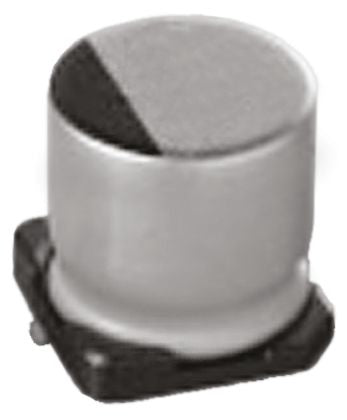

Nichicon 220μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10mm +105°C 10mm 4.5mm [UUX1E221MNL1GS]; 739-3075
by Nichicon
0₫
Mã kho: 7393075
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10mm |
| Height | 10mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 4.5mm |
| Series | UX |
| Leakage Current | 165 μA |
| Ripple Current | 351mA |
| Tolerance | ±20% |
| Polarised | Polar |
