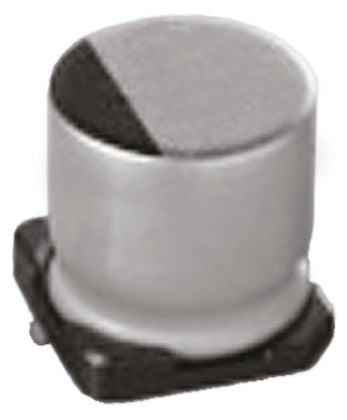

Nichicon 10μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 6mm +105°C 6.3mm 2.2mm [UUT1H100MCL1GS]; 173-3173
by Nichicon
0₫
Mã kho: 1733173
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 10 µF |
Voltage | 50 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 6.3 (Dia.) x 6mm |
Height | 6mm |
Minimum Operating Temperature | -55°C |
Diameter | 6.3mm |
Maximum Operating Temperature | +105°C |
Lifetime | 2000h |
Lead Pitch | 2.2mm |
Series | UT |
Ripple Current | 30mA |
Tolerance | ±20% |
Leakage Current | 5 μA |
Polarised | Polar |
