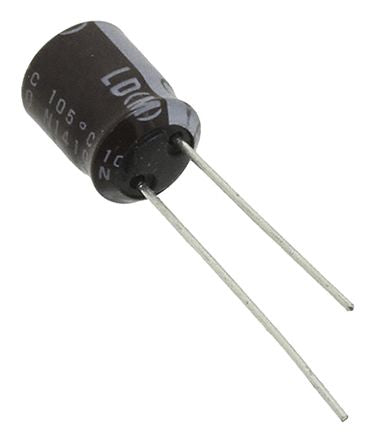

Nichicon 10μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 20mm +105°C 10mm 5mm 20mm [ULD2W100MPD1TD]; 850-8436
by Nichicon
0₫
Mã kho: 8508436
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 450 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 20mm |
| Length | 20mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 20000h |
| Lead Pitch | 5mm |
| Series | LD |
| Tolerance | ±20% |
| Leakage Current | 100 μA |
| Ripple Current | 92mA |
