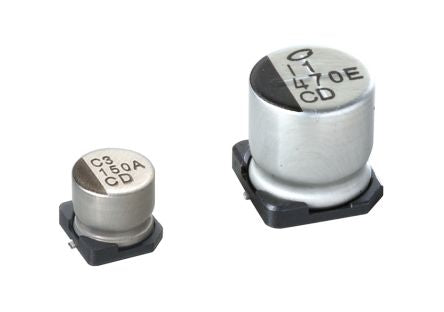

Capacitor Alu SMD -55°C to 105°C 25V 220 [UCD1E221MNL1GS]; 187-2401
by Nichicon
0₫
Mã kho: 1872401
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8.3 x 8.3 x 10mm |
| Height | 10mm |
| Length | 8.3mm |
| Depth | 8.3mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Lead Pitch | 3.1mm |
| Series | CD |
| Dissipation Factor | 0.0014 |
| Polarised | Polar |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
| Ripple Current | 600mA |
