![Nichicon UBX1H101MPL 7152000](http://nguyenxuong.com/cdn/shop/products/F7152000-01_444x238.jpg?v=1594382216)

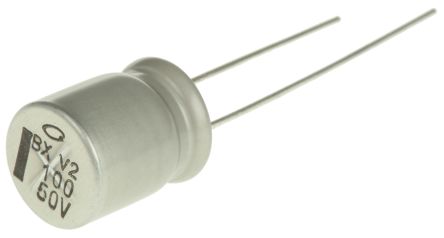

Nichicon 100μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 12.5mm +150°C 10mm 5mm [UBX1H101MPL]; 715-2000
by Nichicon
0₫
Mã kho: 7152000
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 100 µF |
Voltage | 50 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 (Dia.) x 12.5mm |
Height | 12.5mm |
Minimum Operating Temperature | -55°C |
Diameter | 10mm |
Maximum Operating Temperature | +150°C |
Lead Pitch | 5mm |
Lifetime | 1000h |
Series | BX |
Ripple Current | 380mA |
Leakage Current | 4 μA |
Tolerance | ±20% |
