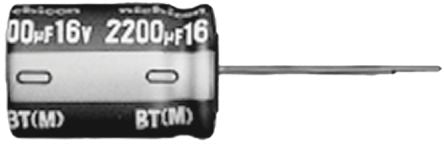

Nichicon 330μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 10 x 20mm +125°C 10mm 5mm [UBT1V331MPD8]; 167-1230
by Nichicon
0₫
Mã kho: 1671230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 330 µF |
Voltage | 35 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 x 20mm |
Height | 20mm |
Minimum Operating Temperature | -40°C |
Diameter | 10mm |
Maximum Operating Temperature | +125°C |
Lead Pitch | 5mm |
Lifetime | 5000h |
Series | BT |
Tolerance | ±20% |
Ripple Current | 950mArms |
Equivalent Series Resistance | 75mΩ |
Leakage Current | 4 μA |
