![Nichicon UBT1V222MHD8 7621718](http://nguyenxuong.com/cdn/shop/products/R7151499-01_ed1f0028-f8e8-4882-8a6b-f1c2a86e701a_444x144.jpg?v=1594026907)

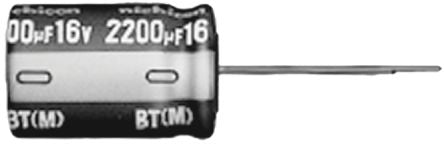

Nichicon 2200μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 18 x 35.5mm +125°C 18mm 7.5mm [UBT1V222MHD8]; 762-1718
by Nichicon
0₫
Mã kho: 7621718
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 2200 µF |
Voltage | 35 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 18 x 35.5mm |
Height | 35.5mm |
Minimum Operating Temperature | -40°C |
Diameter | 18mm |
Maximum Operating Temperature | +125°C |
Lead Pitch | 7.5mm |
Lifetime | 10000h |
Series | BT |
Tolerance | ±20% |
Ripple Current | 2790mArms |
Leakage Current | 4 μA |
Equivalent Series Resistance | 25mΩ |
