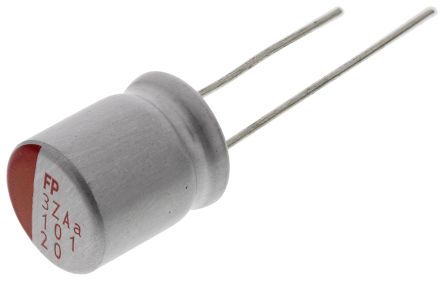

Nichicon 100μF 20V dc Aluminium Polymer Capacitor, Through Hole 10 (Dia.) x 12.5mm +105°C 10mm 5mm [RNS1D101MDN1PH]; 165-3955
by Nichicon
0₫
Mã kho: 1653955
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 20 V dc |
| Mounting Type | Through Hole |
| Technology | Polymer |
| Dimensions | 10 (Dia.) x 12.5mm |
| Height | 12.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 5mm |
| Series | NS |
| Ripple Current | 4.5A |
| Tolerance | ±20% |
| Leakage Current | 300 μA |
| Equivalent Series Resistance | 15mΩ |
