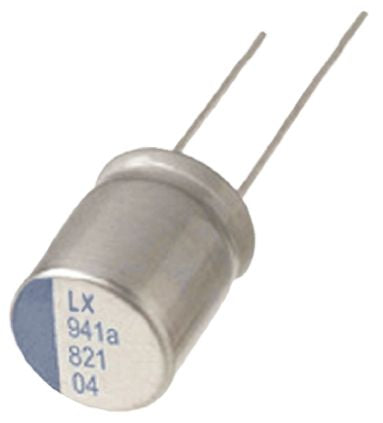

Nichicon 270μF 20V dc Aluminium Polymer Capacitor, Through Hole 10 (Dia.) x 12.5mm +125°C 10mm 5mm [PLX1D271MDL1]; 167-1398
by Nichicon
0₫
Mã kho: 1671398
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 270 µF |
| Voltage | 20 V dc |
| Mounting Type | Through Hole |
| Technology | Polymer |
| Dimensions | 10 (Dia.) x 12.5mm |
| Height | 12.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 5mm |
| Lifetime | 3000h |
| Series | LX |
| Leakage Current | 1080 μA |
| Ripple Current | 2.8A |
| Equivalent Series Resistance | 24mΩ |
| Tolerance | ±20% |
