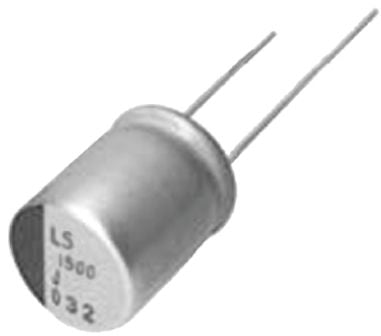

Nichicon 470μF 16V dc Aluminium Polymer Capacitor, Through Hole 10 (Dia.) x 13mm +105°C 10mm 5mm [PLS1C471MDO1]; 173-3346
by Nichicon
0₫
Mã kho: 1733346
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Polymer |
| Dimensions | 10 (Dia.) x 13mm |
| Height | 13mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Lead Pitch | 5mm |
| Series | LS |
| Tolerance | ±20% |
| Leakage Current | 1504 μA |
| Ripple Current | 4.7A |
| Equivalent Series Resistance | 9mΩ |
