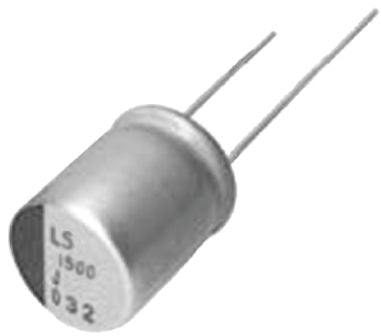

Nichicon 820μF 2.5V dc Aluminium Polymer Capacitor, Through Hole 8 (Dia.) x 9mm +105°C 8mm 3.5mm [PLS0E821MCO6]; 165-3932
by Nichicon
0₫
Mã kho: 1653932
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 820 µF |
| Voltage | 2.5 V dc |
| Mounting Type | Through Hole |
| Technology | Polymer |
| Dimensions | 8 (Dia.) x 9mm |
| Height | 9mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Lead Pitch | 3.5mm |
| Series | LS |
| Leakage Current | 410 μA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 7mΩ |
| Ripple Current | 5.2A |
