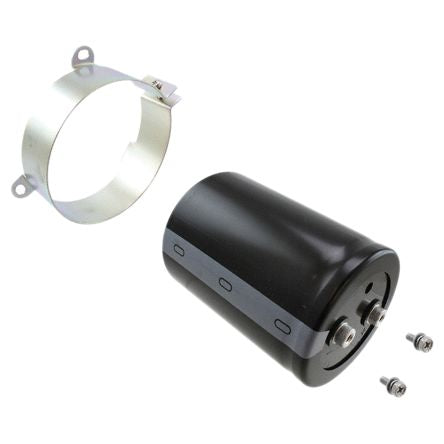

Nichicon 1800μF 400V dc Aluminium Electrolytic Capacitor, Chassis Mount 63.5 (Dia.) x 65mm +85°C 63.5mm [LNY2G182MSEG]; 165-3761
by Nichicon
0₫
Mã kho: 1653761
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1800 µF |
| Voltage | 400 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 63.5 (Dia.) x 65mm |
| Height | 65mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 63.5mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Series | NY |
| Tolerance | ±20% |
| Leakage Current | 2550 μA |
| Ripple Current | 9.1A |
