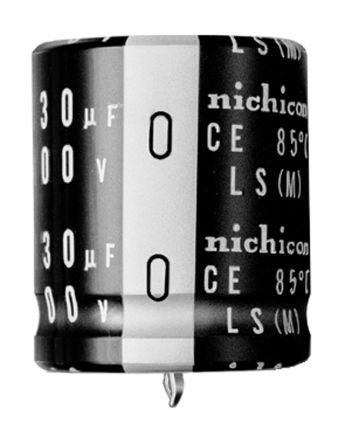

Nichicon 68μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 20 (Dia.) x 25mm +85°C 20mm 10mm [LLS2G680MELY]; 167-1409
by Nichicon
0₫
Mã kho: 1671409
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 68 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 20 (Dia.) x 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 20mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Lifetime | 3000h |
| Series | LS |
| Ripple Current | 750mA |
| Tolerance | ±20% |
| Leakage Current | 0.49 mA |
