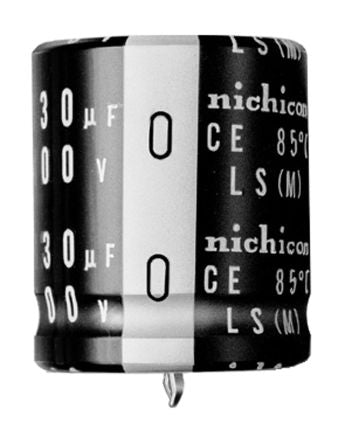

Nichicon 6800μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 25 (Dia.) x 30mm +85°C 25mm 10mm [LLS1V682MELA]; 846-7082
by Nichicon
0₫
Mã kho: 8467082
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 6800 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25 (Dia.) x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Lifetime | 3000h |
| Series | LS |
| Ripple Current | 2.89A |
| Tolerance | ±20% |
| Leakage Current | 1.46 mA |
