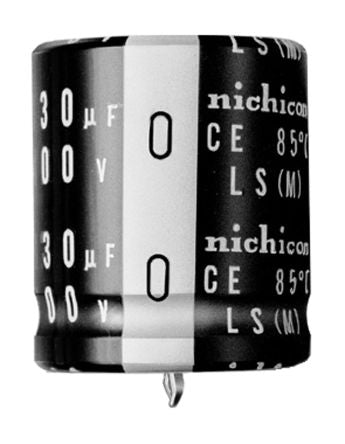

Nichicon 2200μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 22 (Dia.) x 30mm +85°C 22mm 10mm [LLS1J222MELZ]; 167-1426
by Nichicon
0₫
Mã kho: 1671426
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2200 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 22 (Dia.) x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 22mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Lifetime | 3000h |
| Series | LS |
| Tolerance | ±20% |
| Ripple Current | 2.35A |
| Leakage Current | 1.11 mA |
