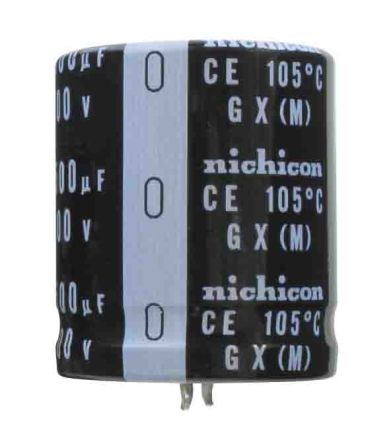

Capacitor Alu Snap in -25 to 105°C 450V [LGZ2W151MELB40]; 187-2443
by Nichicon
0₫
Mã kho: 1872443
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 150 µF |
Voltage | 450 V dc |
Mounting Type | Snap-In |
Technology | Electrolytic |
Dimensions | 30 Dia. x 40mm |
Height | 40mm |
Minimum Operating Temperature | -25°C |
Diameter | 30mm |
Maximum Operating Temperature | +105°C |
Lifetime | 20000h |
Lead Pitch | 10mm |
Series | GZ |
Polarised | Polar |
Leakage Current | 770 μA |
Ripple Current | 790mA |
Dissipation Factor | 0.002 |
Tolerance | ±20% |
