![Nichicon LGU2W221MELC 8442878](http://nguyenxuong.com/cdn/shop/products/R8442878-01_2b3dec7a-1866-47e2-996e-8cae1486c706_314x444.jpg?v=1594004901)

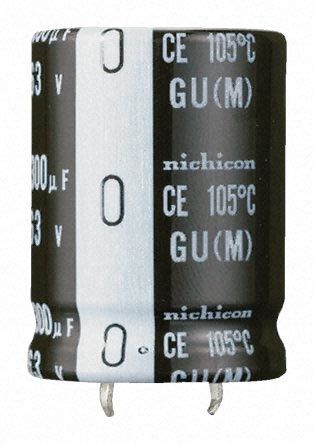

Nichicon 220μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 30mm +105°C 35mm 10mm [LGU2W221MELC]; 844-2878
by Nichicon
0₫
Mã kho: 8442878
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 220 µF |
Voltage | 450 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 35 (Dia.) x 30mm |
Height | 30mm |
Minimum Operating Temperature | -25°C |
Diameter | 35mm |
Maximum Operating Temperature | +105°C |
Lifetime | 3000h |
Lead Pitch | 10mm |
Series | GU |
Tolerance | ±20% |
Ripple Current | 1.12A |
Leakage Current | 0.94 mA |
