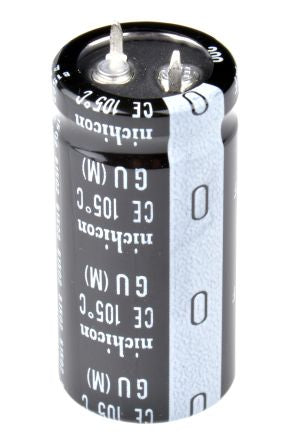

Nichicon 680μF 200V dc Aluminium Electrolytic Capacitor, Through Hole 22 (Dia.) x 45mm +105°C 22mm 10mm [LGU2D681MELZ]; 167-1061
by Nichicon
0₫
Mã kho: 1671061
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 200 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 22 (Dia.) x 45mm |
| Height | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 22mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 3000h |
| Lead Pitch | 10mm |
| Series | GU |
| Ripple Current | 1.78A |
| Tolerance | ±20% |
| Leakage Current | 1.1 mA |
