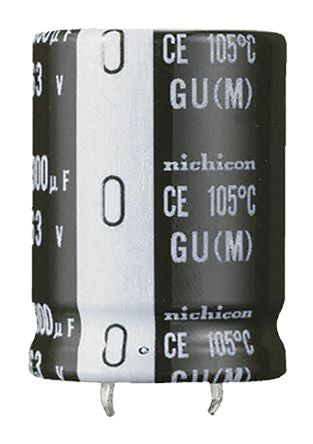

Nichicon 2200μF 200V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 50mm +105°C 35mm 10mm 50mm [LGU2D222MELC]; 851-2157
by Nichicon
0₫
Mã kho: 8512157
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2200 µF |
| Voltage | 200 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 35 (Dia.) x 50mm |
| Length | 50mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 3000h |
| Lead Pitch | 10mm |
| Series | GU |
| Ripple Current | 3.78A |
| Leakage Current | 1.98 mA |
| Tolerance | ±20% |
