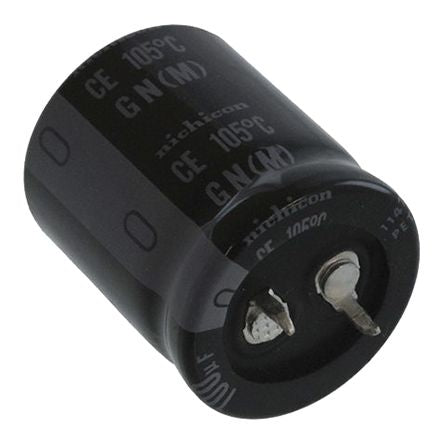

Nichicon 150μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 25 (Dia.) x 30mm +105°C 25mm 10mm 30mm [LGN2W151MELA30]; 851-2116
by Nichicon
0₫
Mã kho: 8512116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 450 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25 (Dia.) x 30mm |
| Length | 30mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 10mm |
| Lifetime | 3000h |
| Series | GN |
| Tolerance | ±20% |
| Leakage Current | 0.77 mA |
| Ripple Current | 790mA |
