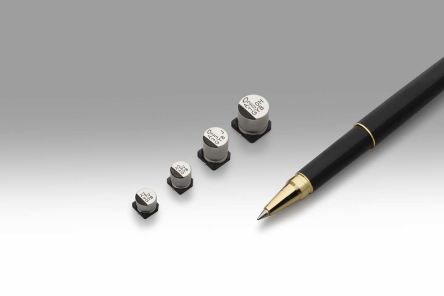

Capacitor Hybrid SMT -55 to 105°C 63V 10 [GYB1J100MCQ1GS]; 187-2281
by Nichicon
0₫
Mã kho: 1872281
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 63 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 6.6 x 6.6 x 5.8mm |
| Height | 5.8mm |
| Length | 6.6mm |
| Depth | 6.6mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2.2mm |
| Lifetime | 10000h |
| Series | YB |
| Tolerance | ±20% |
| Polarised | Polar |
| Ripple Current | 1A |
| Equivalent Series Resistance | 120mΩ |
| Dissipation Factor | 0.0008 |
