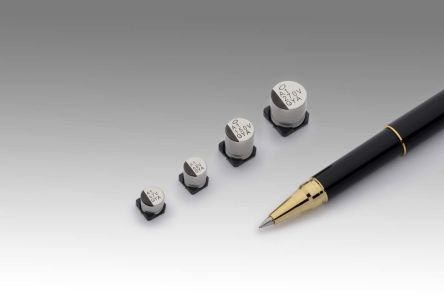

Capacitor Hybrid SMT -55 to 125°C 25V 10 [GYA1E101MCQ1GS]; 187-2199
by Nichicon
0₫
Mã kho: 1872199
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 6.6 x 6.6 x 7.7mm |
| Height | 7.7mm |
| Length | 6.6mm |
| Depth | 6.6mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 2.2mm |
| Lifetime | 4000h |
| Series | YA |
| Dissipation Factor | 0.0014 |
| Equivalent Series Resistance | 30mΩ |
| Leakage Current | 25 (Short Term) μA |
| Tolerance | ±20% |
| Ripple Current | 1.4A |
| Polarised | Polar |
