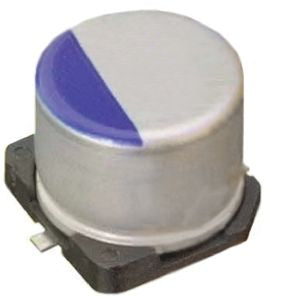

NIC Components 15μF 50V dc Hybrid Conductive Polymer Aluminium Capacitor, Surface Mount 6.3 (Dia.) x 8mm +125°C 6.3mm [NSPE-T150M50V6.3X8NBF]; 737-9303
0₫
Mã kho: 7379303
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 15 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 6.3 (Dia.) x 8mm |
| Height | 8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 2.2mm |
| Lifetime | 2000h |
| Series | NSPE-T |
| Tolerance | ±20% |
| Ripple Current | 840mA |
| Equivalent Series Resistance | 80mΩ |
| Leakage Current | 100 μA |
| Polarised | Polar |
