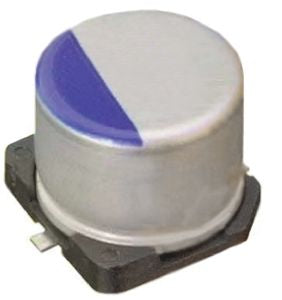

NIC Components 100μF 35V dc Hybrid Conductive Polymer Aluminium Capacitor, Surface Mount 8 (Dia.) x 10.8mm +105°C 8mm [NSPE-H101M35V8X10.8NBF]; 162-1410
0₫
Mã kho: 1621410
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 8 (Dia.) x 10.8mm |
| Height | 10.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.2mm |
| Lifetime | 10000h |
| Series | NSPE-H |
| Tolerance | ±20% |
| Leakage Current | <0.05 CV or 100 μA @ 2 min |
| Polarised | Polar |
| Equivalent Series Resistance | 30mΩ |
| Ripple Current | 1.8A |
