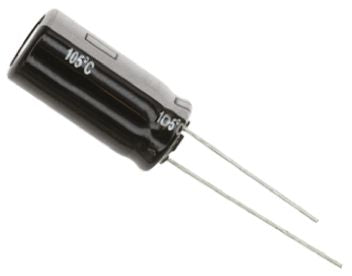

NIC Components 680μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 25mm +105°C 16mm 7.5mm [NRSZ681M63V16X25F]; 737-4248
0₫
Mã kho: 7374248
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 16 (Dia.) x 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 7.5mm |
| Series | NRSZ |
| Equivalent Series Resistance | 50mΩ |
| Ripple Current | 1.5A |
| Leakage Current | 428 μA |
| Tolerance | ±20% |
