![NIC Components NRSZ471M50V12.5X20F 1693611](http://nguyenxuong.com/cdn/shop/products/R7373872-01_b650b2d9-33fd-43bf-970e-af2310eda117_352x276.jpg?v=1594403375)

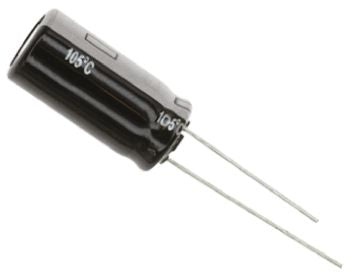

NIC Components 470μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 20mm +105°C 12.5mm 5mm [NRSZ471M50V12.5X20F]; 169-3611
0₫
Mã kho: 1693611
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 470 µF |
Voltage | 50 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 12.5 (Dia.) x 20mm |
Height | 20mm |
Minimum Operating Temperature | -55°C |
Diameter | 12.5mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 5mm |
Lifetime | 7000h |
Series | NRSZ |
Leakage Current | 235 μA |
Ripple Current | 1.2A |
Equivalent Series Resistance | 60mΩ |
Tolerance | ±20% |
