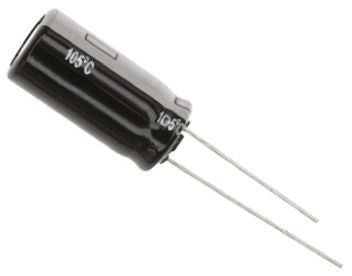

NIC Components 220μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 20mm +105°C 10mm 5mm [NRSZ221M50V10X20F]; 169-3612
0₫
Mã kho: 1693612
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 20mm |
| Height | 20mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 5000h |
| Series | NRSZ |
| Ripple Current | 850mA |
| Tolerance | ±20% |
| Leakage Current | 110 μA |
| Equivalent Series Resistance | 100mΩ |
