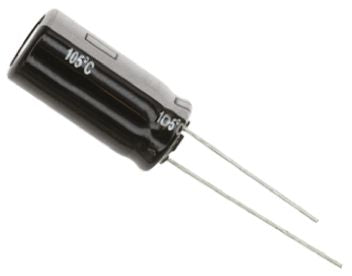

NIC Components 220μF 500V dc Aluminium Electrolytic Capacitor, Through Hole 30 x 45mm +105°C 30mm 10mm [NRLPW221M500V30X45SF]; 170-4411
0₫
Mã kho: 1704411
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 220 µF |
Voltage | 500 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 30 x 45mm |
Height | 45mm |
Minimum Operating Temperature | -25°C |
Diameter | 30mm |
Maximum Operating Temperature | +105°C |
Lifetime | 3000h |
Lead Pitch | 10mm |
Series | NRL-PW |
Leakage Current | 994 μA |
Equivalent Series Resistance | 1.884Ω |
Ripple Current | 1.7A |
Tolerance | ±20% |
