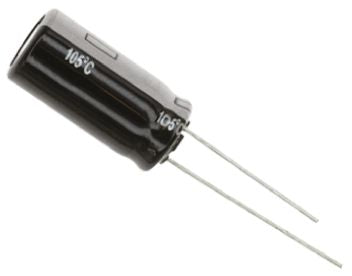

NIC Components 2200μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 20mm +105°C 12.5mm 5mm [NRE-JL222M16V12.5X20F]; 737-3885
0₫
Mã kho: 7373885
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2200 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 (Dia.) x 20mm |
| Height | 20mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 10000h |
| Series | NRE-JL |
| Tolerance | ±20% |
| Equivalent Series Resistance | 41mΩ |
| Ripple Current | 1.9A |
| Leakage Current | 0.01 CV or 3 μA @ 2 min |
