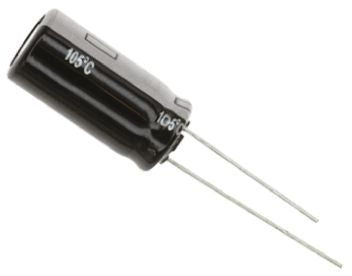

NIC Components 47μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 x 30mm +105°C 12.5mm 5mm [NRB-XW470M400V12.5X30F]; 768-3992
0₫
Mã kho: 7683992
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 5mm |
| Series | NRB-XW |
| Equivalent Series Resistance | 7.06Ω |
| Leakage Current | 3 x √CV (After 5 min) |
| Tolerance | ±20% |
| Ripple Current | 0.44mA |
