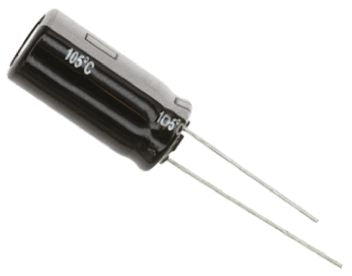

NIC Components 150μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 18 x 40mm +105°C 18mm 7.5mm [NRB-XW151M400V18X40F]; 170-4405
0₫
Mã kho: 1704405
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 18 x 40mm |
| Height | 40mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 18mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 10000h |
| Series | NRB-XW |
| Tolerance | ±20% |
| Ripple Current | 0.91mA |
| Equivalent Series Resistance | 2.21Ω |
| Leakage Current | 3 x √CV (After 5 min) |
