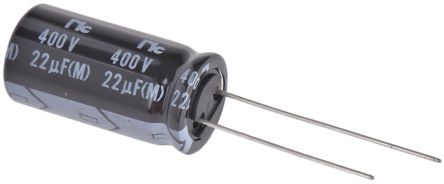

NIC Components 22μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 x 25mm +105°C 12.5mm 5mm [NRB-XS220M400V12.5X25F]; 768-3898
0₫
Mã kho: 7683898
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 x 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 12000h |
| Series | NRB-XS |
| Leakage Current | 0.02 CV + 25 uA @ 5 min, 0.04 CV + 100 uA @ 1 min |
| Ripple Current | 760mA |
| Equivalent Series Resistance | 15.1Ω |
| Tolerance | ±20% |
