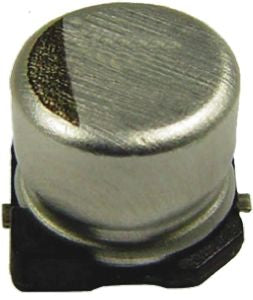

NIC Components 220μF 63V dc Aluminium Electrolytic Capacitor, Surface Mount 12.5 (Dia.) x 14mm +105°C 12.5mm 4.6mm [NAZT221M63V12.5X14JLBF]; 169-3829
0₫
Mã kho: 1693829
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 63 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 12.5 (Dia.) x 14mm |
| Height | 14mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Lead Pitch | 4.6mm |
| Series | NAZT |
| Tolerance | ±20% |
| Polarised | Polar |
| Ripple Current | 580mA |
| Leakage Current | 138.6 μA |
| Equivalent Series Resistance | 160mΩ |
