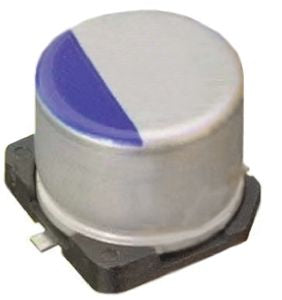

NIC Components 47μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 6.3mm +105°C 6.3mm 2.2mm [NACZ470M35V6.3X6.3TR13F]; 169-3685
0₫
Mã kho: 1693685
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 6.3mm |
| Height | 6.3mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2.2mm |
| Lifetime | 1000h |
| Series | NACZ |
| Polarised | Polar |
| Tolerance | ±20% |
| Leakage Current | 16.45 μA |
| Ripple Current | 230mA |
| Equivalent Series Resistance | 440mΩ |
