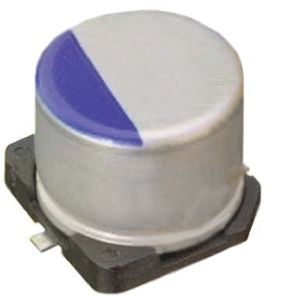

NIC Components 330μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.5mm +105°C 10mm 4.6mm [NACZ331M35V10X10.5TR13F]; 737-9732
0₫
Mã kho: 7379732
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 330 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10.5mm |
| Height | 10.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 4.6mm |
| Series | NACZ |
| Leakage Current | 115.5 μA |
| Equivalent Series Resistance | 90mΩ |
| Tolerance | ±20% |
| Ripple Current | 670mA |
| Polarised | Polar |
