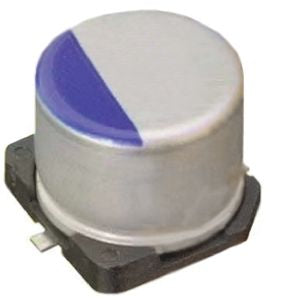

NIC Components 330μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.5mm +105°C 10mm 4.6mm [NACZ331M35V10X10.5TR13F]; 169-3687
0₫
Mã kho: 1693687
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 330 µF |
Voltage | 35 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 10 (Dia.) x 10.5mm |
Height | 10.5mm |
Minimum Operating Temperature | -55°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lifetime | 2000h |
Lead Pitch | 4.6mm |
Series | NACZ |
Equivalent Series Resistance | 90mΩ |
Ripple Current | 670mA |
Tolerance | ±20% |
Leakage Current | 115.5 μA |
Polarised | Polar |
