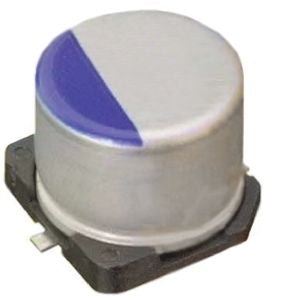

NIC Components 10μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 5 (Dia.) x 6.3mm +105°C 5mm 1.4mm [NACZ100M35V5X6.3TR13F]; 169-3686
0₫
Mã kho: 1693686
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 5 (Dia.) x 6.3mm |
| Height | 6.3mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 1.4mm |
| Lifetime | 1000h |
| Series | NACZ |
| Equivalent Series Resistance | 760mΩ |
| Ripple Current | 150mA |
| Polarised | Polar |
| Leakage Current | 3.5 μA |
| Tolerance | ±20% |
