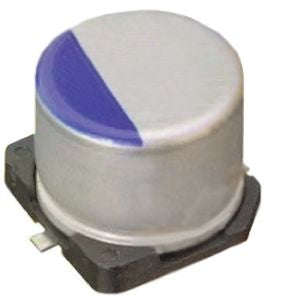

NIC Components 4.7μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 4 (Dia.) x 5.5mm +85°C 4mm 1mm [NACE4R7M35V4X5.5TR13F]; 737-9656
0₫
Mã kho: 7379656
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 4 (Dia.) x 5.5mm |
| Height | 5.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 4mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 1mm |
| Lifetime | 2000h |
| Series | NACE |
| Polarised | Polar |
| Ripple Current | 20mA |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 42.3Ω |
