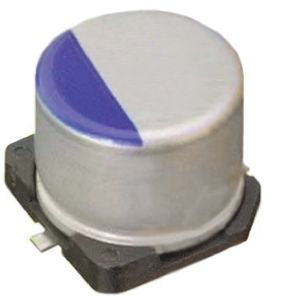

NIC Components 220μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.5mm +85°C 8mm 3.2mm [NACE221M35V8X10.5TR13F]; 737-9665
0₫
Mã kho: 7379665
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 10.5mm |
| Height | 10.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 3.2mm |
| Lifetime | 2000h |
| Series | NACE |
| Tolerance | ±20% |
| Ripple Current | 270mA |
| Equivalent Series Resistance | 1.06Ω |
| Polarised | Polar |
| Leakage Current | 77 μA |
